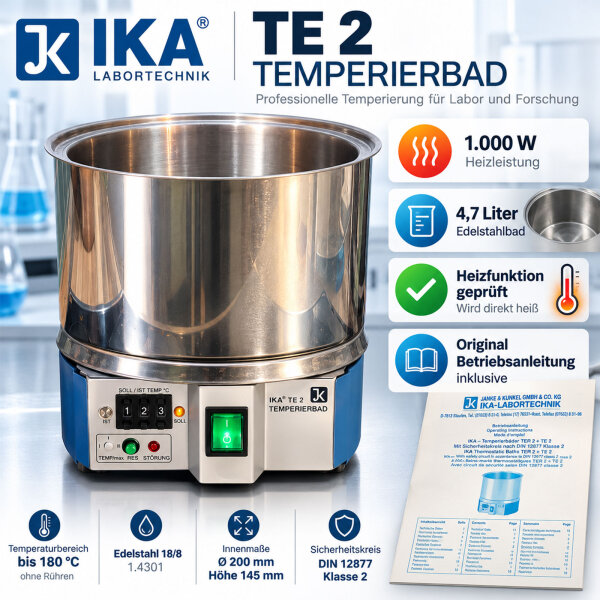

IKA TE 2 – Professional Electronic
Laboratory Thermostatic Bath
The IKA TE 2 is a
professional laboratory thermostatic bath
designed for controlled temperature
treatment of samples, laboratory vessels
and suitable heat-transfer media.
The instrument features a
4.7-litre stainless steel bath
and a powerful
1,000 W heating system.
Electronic temperature control
allows the required bath temperature
to be selected.
According to the original manufacturer
documentation, the temperature range
extends from ambient temperature
up to 180 °C
in operation without stirring.
The system incorporates a
safety circuit according to
DIN 12877, Class 2, and
dry-running protection as specified
by the manufacturer.
Offered here is a
well-maintained, used and
functionally tested IKA TE 2
from an operating professional
laboratory.
The heating function was
successfully tested.
The instrument starts heating
immediately after switching on.
|
✓ Heating Function Tested
|
✓ 1,000 W Heating Power
|
|
✓ 4.7 L Stainless Steel Bath
|
✓ Original Manual Included
|
Product Details
-
Manufacturer:
Janke & Kunkel GmbH & Co. KG
-
Brand: IKA-Labortechnik
-
Model: TE 2
-
Product Type:
Electronic Laboratory Thermostatic Bath
-
Serial Number: 636396
-
Heating Power: 1,000 W
-
Temperature Range:
Ambient temperature to 180 °C
according to original documentation
-
Bath Volume: 4.7 litres
-
Bath Material:
Stainless steel 18/8 (1.4301)
-
Internal Diameter: 200 mm
-
Internal Height: 145 mm
-
Temperature Control:
Electronic
-
Safety Circuit:
DIN 12877, Class 2
-
Dry-Running Protection:
According to manufacturer specification
-
Electrical Supply:
200–250 V AC
-
Frequency: 50/60 Hz
-
Protection Rating: IP21
-
Country of Manufacture:
Germany
Condition
Good used condition –
heating function successfully tested.
The thermostatic bath originates
from an operating professional
laboratory and is in good
overall used condition.
The housing, control panel
and stainless steel vessel
are well maintained.
Normal signs of age and
previous laboratory use are present.
Some deposits and discolouration
are visible inside the stainless
steel bath, particularly on
the bottom surface.
The actual cosmetic condition
is documented in the original
product photographs.
The heating function was tested
successfully before listing.
The instrument begins heating
immediately after switching on.
The original operating manual
is supplied with the instrument.
Technical Specifications
|
Model
|
IKA TE 2
|
|
Heating Power
|
1,000 W
|
|
Temperature Range
|
Ambient temperature to 180 °C
(without stirring)
|
|
Temperature Setting Resolution
|
1 K, manufacturer specification
|
|
Temperature Control
|
Electronic, set/actual display
|
|
Safety Circuit
|
DIN 12877, Class 2
|
|
Dry-Running Protection
|
Included according to manufacturer
|
|
Minimum Fill Height
|
15 mm above the centre of the bottom
|
|
Bath Volume
|
4.7 litres
|
|
Bath Material
|
Stainless steel 18/8 (1.4301)
|
|
Internal Diameter
|
200 mm
|
|
Internal Height
|
145 mm
|
|
Electrical Supply
|
200–250 V AC
|
|
Frequency
|
50/60 Hz
|
|
Protection Rating
|
IP21
|
|
Permitted Ambient Temperature
|
+5 to +40 °C
|
|
Maximum Relative Humidity
|
80 %
|
|
Weight
|
Approx. 5.7 kg
|
|
Dimensions (W × D × H)
|
250 × 250 × 250 mm
|
Specifications are based on
the original manufacturer
operating manual supplied
with the instrument.
These specifications do not represent
a recent independent calibration
or complete performance validation
of the offered individual instrument.
Operation and Temperature Control
The IKA TE 2 features an
electronic temperature control system
for setting the required
bath temperature.
The instrument is equipped with
set/actual temperature indication
and a safety circuit according
to original manufacturer specifications.
The bath must be filled with a
suitable heat-transfer medium
in accordance with the
operating manual.
Features and Applications
- Powerful 1,000 W heating system
- 4.7-litre stainless steel bath
- Electronic temperature control
- Manufacturer-rated temperature
range up to 180 °C
- Corrosion-resistant stainless steel 1.4301
- Integrated safety circuit
- Robust professional construction
- Original operating manual included
The instrument is suitable for
appropriate laboratory temperature
control applications in
research, analytical laboratories,
education and sample preparation.
Typical applications include
temperature treatment of compatible
laboratory vessels and samples
within the specified operating limits.
Included Items
- 1 × IKA TE 2 thermostatic bath
- 1 × stainless steel bath vessel
- 1 × mains power cable
- 1 × original operating manual
The listing includes the
instrument shown in the photographs
and the accessories expressly listed.
Laboratory vessels and
consumables are not included.
Original Documentation
The original operating manual
for IKA TE 2 and TER 2
thermostatic baths is included.
The manual provides information
about operation, temperature control,
safety, maintenance
and technical specifications.
Origin and Functional Testing
The instrument originates
from an operating professional
laboratory.
The heating function was
successfully checked before listing.
Heating starts immediately
after switching on.
No recent calibrated temperature
measurement or documented independent
test of the safety cut-off
has been performed.
Important Information
This is a used electrical
laboratory thermostatic bath.
Operation must comply with
the original operating manual
and use a suitable
heat-transfer medium.
The specified minimum
fill height must be observed.
Applicable workplace electrical
safety requirements and
equipment safety functions
must be considered
before professional use.
