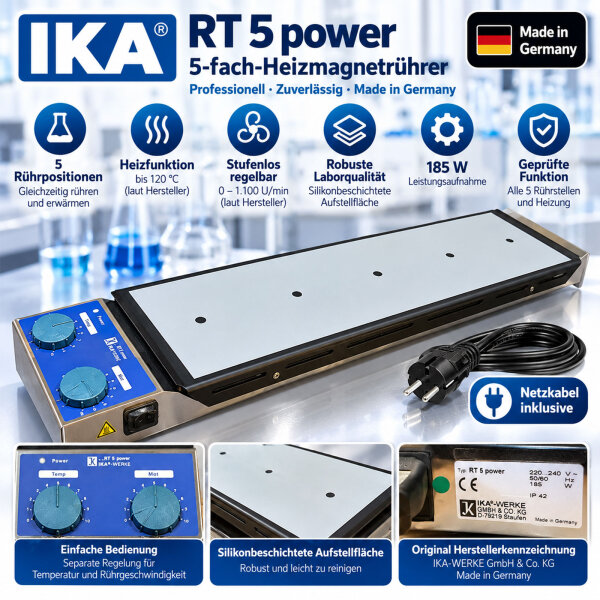

IKA RT 5 power – 5-Position Heated Magnetic Stirrer
The IKA RT 5 power is a professional
multi-position heated magnetic stirrer designed
for simultaneous mixing and heating
of up to five laboratory samples.
The instrument features five magnetic
stirring positions and an integrated
heating function. Stirring speed and
heating output can be adjusted using
two separate rotary controls.
According to manufacturer specifications,
the instrument offers a speed range
of 0–1,100 rpm and a maximum
heating surface temperature of
120°C.
Rated power consumption is 185 W.
Offered here is a well-maintained
used unit in good condition
from laboratory inventory.
All five stirring positions and
the heating function have been
successfully tested.
A power cable is included.
|
✓ All 5 Positions Tested
|
✓ Heating Function Tested
|
|
✓ Made in Germany
|
✓ Power Cable Included
|
Product Details
-
Manufacturer:
IKA-WERKE GmbH & Co. KG
-
Brand: IKA
-
Model: RT 5 power
-
Product Type:
Multi-Position Heated Magnetic Stirrer
-
Stirring Positions: 5
-
Position Spacing: 90 mm
-
Maximum Stirring Volume:
0.4 L water per position
-
Speed Range: 0–1,100 rpm
-
Maximum Surface Temperature: 120°C
-
Heating Output: 175 W
-
Power Consumption: 185 W
-
Controls:
Separate heating and stirring rotary knobs
-
Voltage: 220–240 V AC
-
Frequency: 50/60 Hz
-
Protection Rating: IP42
-
Country of Manufacture: Germany
Condition
Good used condition – heating and
stirring functions successfully tested.
The unit originates from laboratory stock
and shows minor cosmetic signs
of previous use.
The housing, working plate and controls
show light surface marks and wear.
Please refer to the original photographs
for the actual cosmetic condition.
All five magnetic stirring positions
have been successfully tested.
The integrated heating function
also operates correctly during testing.
Both rotary controls were operated
during the functional test.
No independent calibrated speed
or temperature measurements
have been carried out.
Technical Specifications
| Model |
RT 5 power |
| Stirring Positions |
5 |
| Stirring Position Spacing |
90 mm |
| Maximum Stirring Volume per Position |
0.4 L water |
| Total Stirring Capacity |
Up to 2.0 L water across 5 positions |
| Speed Range |
0–1,100 rpm |
| Maximum Stirring Bar Length |
30 mm |
| Heating Output |
175 W |
| Maximum Surface Temperature |
120°C |
| Operating Voltage |
220–240 V AC |
| Frequency |
50/60 Hz |
| Power Consumption |
185 W |
| Dimensions (W × D × H) |
138 × 552 × 65 mm |
| Weight |
Approx. 3.0 kg |
| Ingress Protection |
IP42 |
| Working Surface Material |
Silicone-coated surface |
Technical values are based on original
manufacturer specifications for
the IKA RT 5 power.
They do not represent recently calibrated
or independently measured performance
values of this particular instrument.
Functional Test
- ✓ Instrument powered on successfully
- ✓ All five stirring positions tested
- ✓ Heating function successfully tested
- ✓ Heating and speed controls operated
Basic heating and magnetic stirring
functions were confirmed operational.
Features and Applications
- Five simultaneous stirring positions
- Integrated heating function
- Separate heating and stirring controls
- Designed for parallel laboratory experiments
- Space-saving multi-position design
- Professional IKA laboratory equipment
- Manufactured in Germany
Typical applications include laboratory
sample preparation, mixing and heating
of solutions, research, analytical
procedures, education and development.
Included Items
- 1 × IKA RT 5 power heated magnetic stirrer
- 1 × power cable
Laboratory vessels, magnetic stirring bars
and other accessories not specifically
listed are not included.
The original product photographs
and description determine the actual
scope of supply.
Important Information
This is a used electrical laboratory
instrument with an integrated
heating function.
The working surface may remain hot
after operation.
No recent calibrated temperature
or speed verification and no documented
electrical safety inspection have
been carried out.
Applicable workplace and electrical
equipment safety requirements should
be observed before further
professional use.
Trademark Notice
All trademarks and product names belong
to their respective rights holders
and are used exclusively to identify
the original product offered.
The seller is not commercially affiliated
with the manufacturer and is neither
an authorised dealer nor a representative.
This listing is not authorised,
sponsored or endorsed by IKA.
Image Notice
Product images may have been digitally
or AI-assisted optimised regarding
background, isolation or presentation.
The original product photographs
and item description determine
actual condition and included items.
